Buried scraper conveyor

Product overview: Alloy steel die forging chain as a conveyor chain, wear resistance, high strength, long life, easy to disassemble. The return chain is supported by idler with inlaid bearing, so the power consumption is less, the abrasion of scraper chain is greatly reduced, and the return chain is free to sag between the rollers to realize the automatic tension of the chain, so as to ensure the normal operation of the equipment in the case of long chain. Scraper and chain are connected by double nuts, which is convenient to replace, firm and reliable.

Previous :ZBT bucket elevator
Next :End

Note:

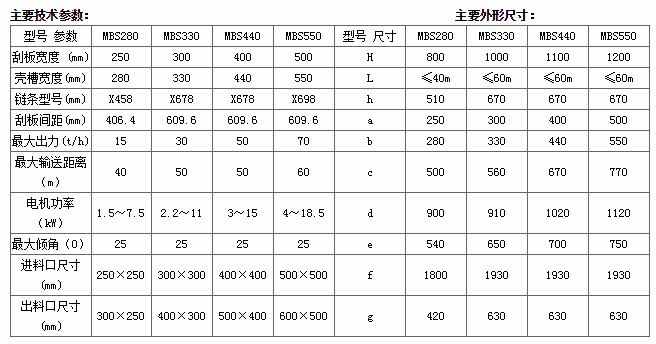

1. The maximum output of the equipment in the table is the value when the equipment is transported horizontally.
2. When the maximum conveying distance is greater than the value in the table, special design is required.
3. The motor power is selected according to the transmission distance and output.
4. The unit not indicated in the table is mm. This drawing is for reference size and shape, which is subject to change according to user requirements and site layout.

Selection and ordering:
MBS type buried scraper conveyor is selected by the user, and the equipment output, conveying distance, height and size of material inlet and outlet, relevant layout and supply scope shall be provided.
