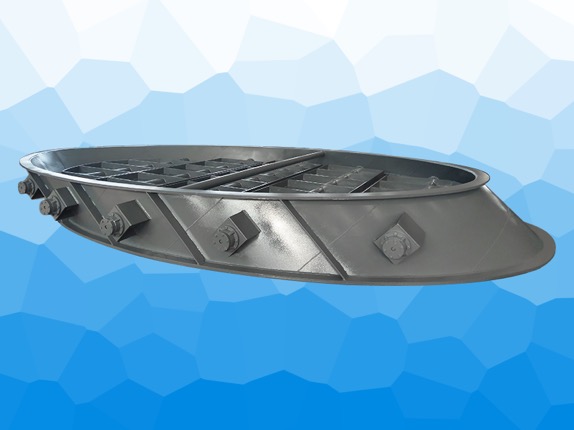

The electric shutter valve is divided into electric shutter (round type) valve and electric shutter (window type) valve. The valve is used together with electric actuator and has the advantages of small opening and closing torque, sensitive action, reliable performance, large diameter and light weight. Widely used in metallurgy, building materials, electric power, petrochemical, light industry and other industrial sectors of fans, air conditioners, electric dust collection and various large pipes, can automatically or manually adjust and cut off the dust and gas.
Technical parameters：
Specification and model | DN2600~DN5000 | body material | Q345、304、316L、1Cr18Ni9Ti |
working temperature | -30℃~850℃ | body material | Q345、304、316L、1Cr18Ni9Ti |
Nominal pressure | 0.01MPa | body material | Q345、304、316L、1Cr18Ni9Ti |
Power supply pressure | 380V 50HZ | Sealing surface material | Q345、304、316L、1Cr18Ni9Ti |
Leakage rate | ≤0.5% | Tilt angle | 30~80° |
Actuator model | B+RS1000~B+RS5000 | Input signal | 4-20mA |
Torque model | 10000~50000 | Purpose | Cement line, steel, electric power, metallurgy |
