Rubber ball pump

Product overview:

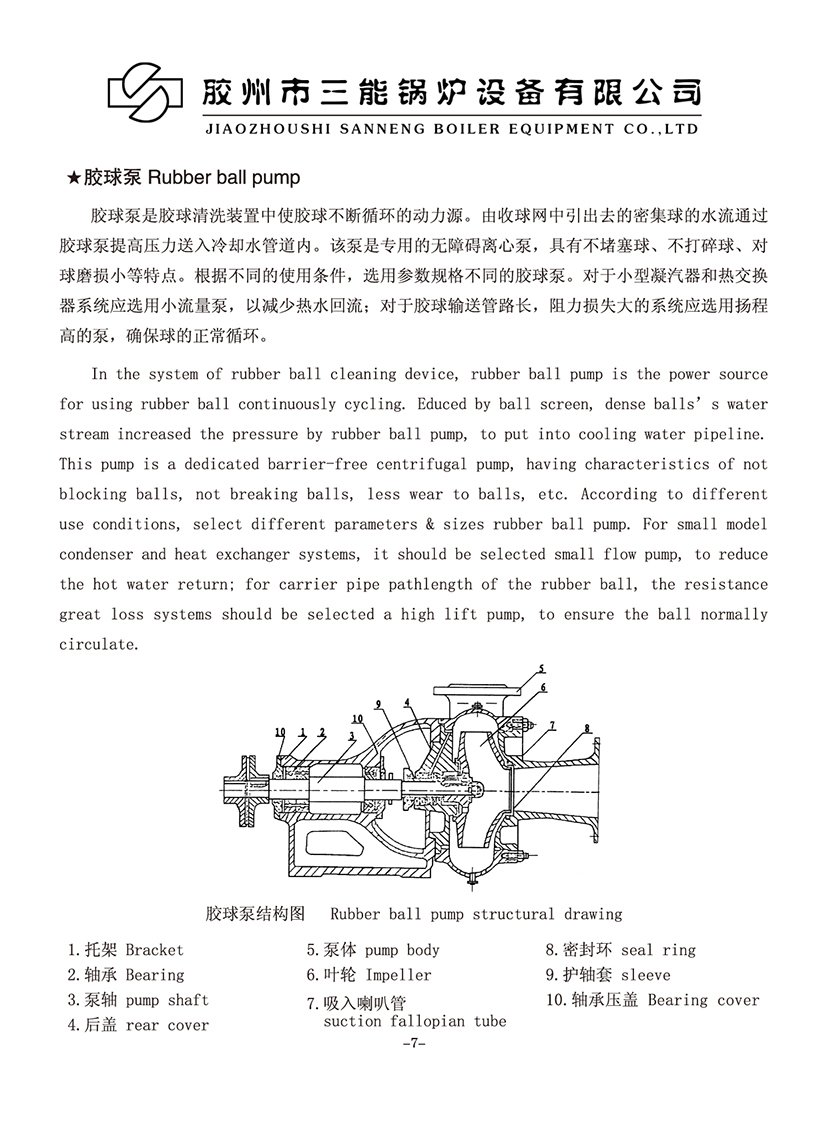

Rubber ball pump is the power source of rubber ball continuous circulation in rubber ball cleaning device. The water flow of dense balls from the ball collecting net is sent into the cooling water pipe through the rubber ball pump to increase the pressure. The pump is a special barrier free centrifugal pump, which has the characteristics of not blocking the ball, not breaking the ball, and little wear to the ball. According to different service conditions, the rubber ball pump with different parameters and specifications is selected. For small condenser and heat exchanger system, small flow pump should be selected to reduce hot water reflux; for system with long rubber ball conveying pipeline and large resistance loss, high head pump should be selected to ensure normal circulation of ball.

Previous :Secondary filter screen
Next :Receiving net

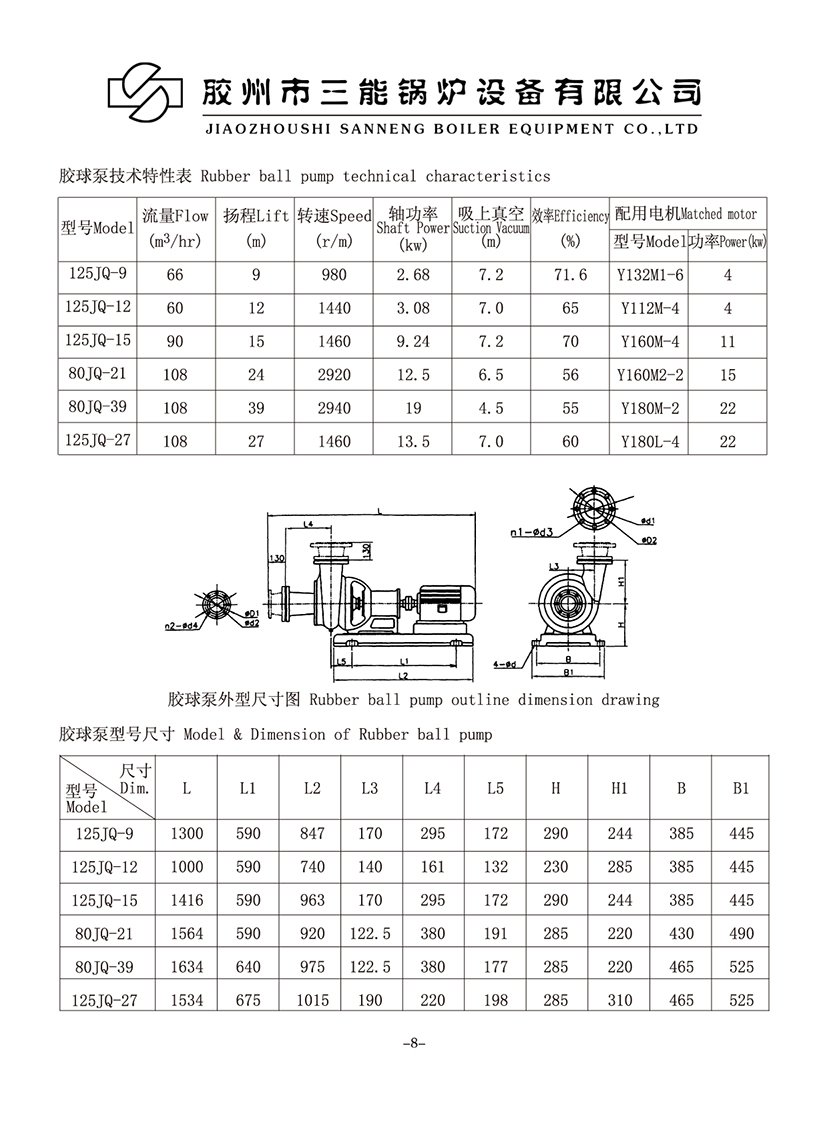

Technical parameters：

model	flow (m3/h)	lift (m)	speed (r/m)	Shaft power (kw)	Suck in a vacuum height(m)	efficiency	Matching motor
model	flow (m3/h)	lift (m)	speed (r/m)	Shaft power (kw)	Suck in a vacuum height(m)	efficiency	model	Power KW
125JQ-9	66	9	980	2.68	7.2	71.6	Y132M1-6	4
125JQ-12	60	12	1440	3.08	7.0	65	Y112M-4	4
125JQ-15	90	15	1460	9.24	7.2	70	Y160M-4	11
80JQ-21	108	24	2920	12.5	6.5	56	Y160M2-2	15
80JQ-39	108	39	2940	19	4.5	55	Y180M-2	22
125JQ-27	108	27	1460	13.5	7.0	60	Y180M-4	22
