Loading chamber

Product overview:

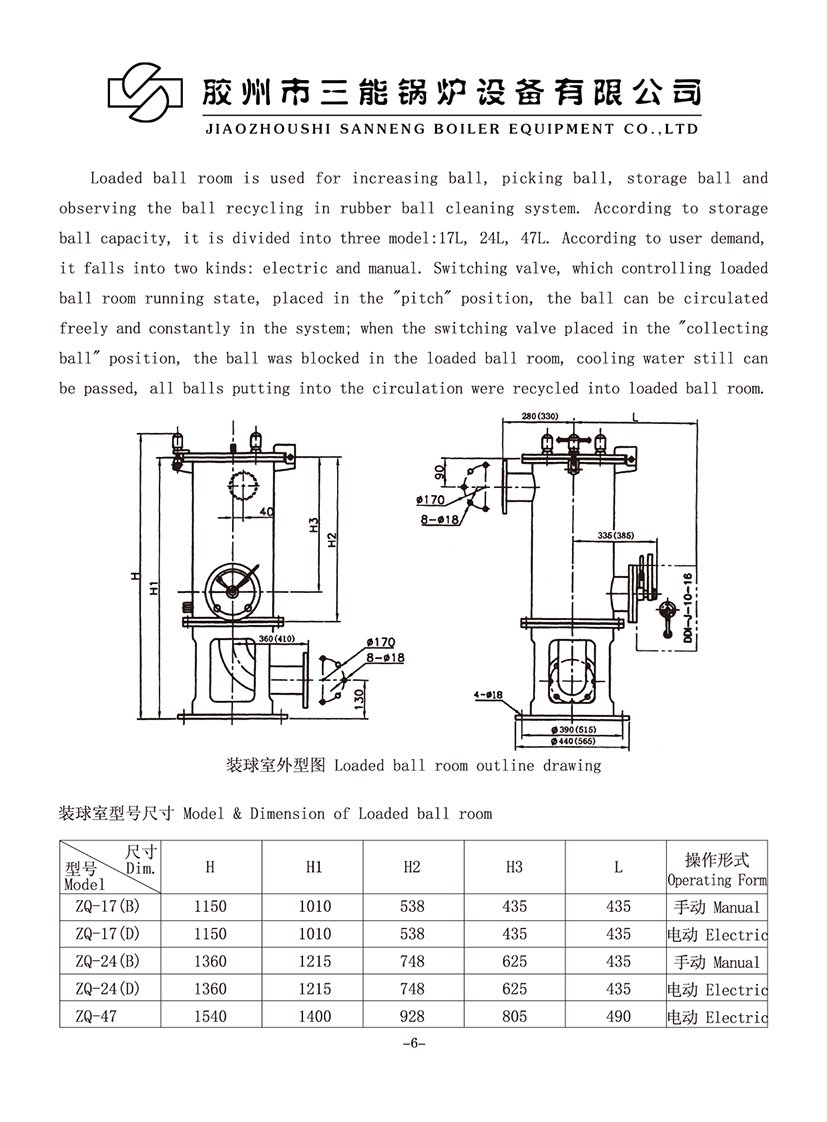

The ball loading chamber is a device used to add, take, store and observe the circulation of the ball in the rubber ball cleaning system. According to the storage ball volume, it can be divided into three types: 17L, 24L and 47l. According to the user's needs, it can be divided into electric and manual. When the switching valve controlling the operation state of the ball loading chamber is set at the "ball throwing" position, the ball can freely and continuously circulate in the system. When the switch valve is placed in the "ball receiving" position, the ball is blocked in the ball loading chamber, the cooling water can still pass through, and all the balls put into circulation are recovered to the ball loading chamber.

Previous :Receiving net
Next :EDF secondary filter screen

Technical parameters：

model size	H	H1	H2	H3	L	Operation form
ZQ-17B	1150	1010	538	415	435	Manual
ZQ-17D	1150	1010	538	415	435	Electric
ZQ-24B	1360	1215	748	625	435	Manual
ZQ-24D	1360	1215	748	625	435	Electric
ZQ-47	1540	1400	928	805	490	Electric
