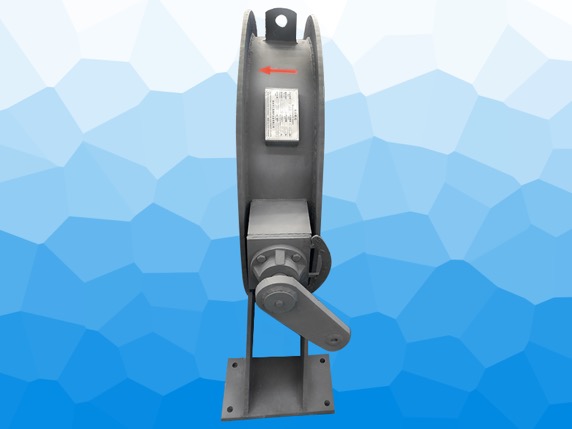

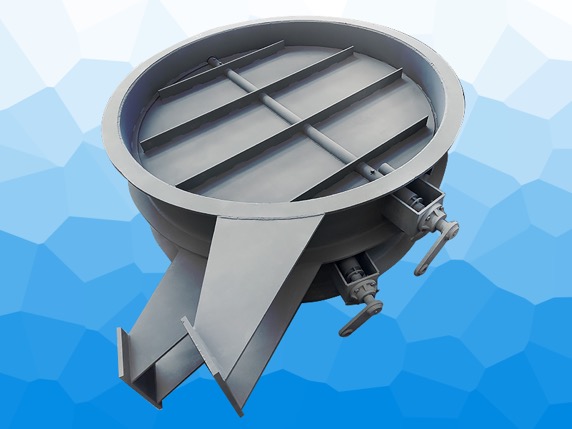

Electric high temperature butterfly valve and electric actuator are widely used in throttling devices of industrial departments to achieve automatic control and remote control of production process. It is especially suitable for the occasions where the maximum working temperature is no more than 650C, low pressure difference and low leakage is required.
Technical parameters：
Specification and model | DN2600~DN5000 | body material | Q345、304、316L、1Cr18Ni9Ti |
working temperature | -30℃~850℃ | body material | Q345、304、316L、1Cr18Ni9Ti |
Nominal pressure | 0.01MPa | body material | Q345、304、316L、1Cr18Ni9Ti |
Power supply pressure | 380V 50HZ | Sealing surface material | Q345、304、316L、1Cr18Ni9Ti |
Leakage rate | ≤0.5% | Tilt angle | 30~80° |
Actuator model | B+RS1000~B+RS5000 | Input signal | 4-20mA |
Torque model | 10000~50000 | Purpose | Cement line, steel, electric power, metallurgy |
