Electric shutter valve

Product overview:

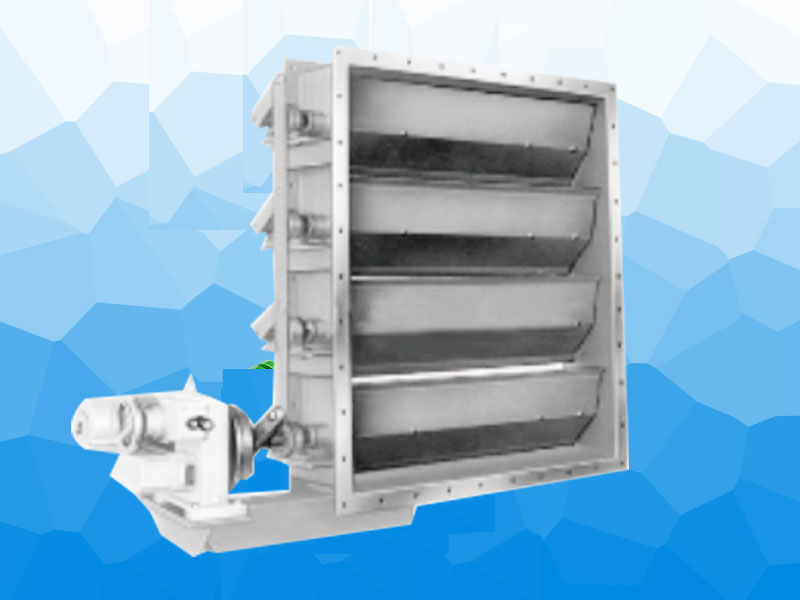

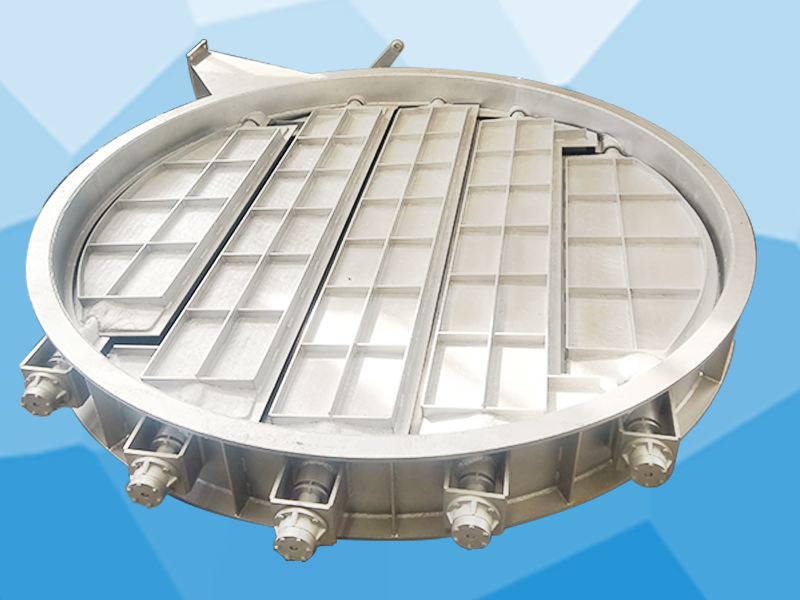

The electric shutter valve is divided into electric shutter (round type) valve and electric shutter (window type) valve. The valve is used together with electric actuator and has the advantages of small opening and closing torque, sensitive action, reliable performance, large diameter and light weight. Widely used in metallurgy, building materials, electric power, petrochemical, light industry and other industrial sectors of fans, air conditioners, electric dust collection and various large pipes, can automatically or manually adjust and cut off the dust and gas.

Previous :Single shaft double baffle valve
Next :Electric butterfly valve

The valve is new and reliable, which is suitable for high temperature and medium temperature steel plant. The high temperature flue gas can enter into the waste heat boiler at the end of kiln to make full use of the waste heat and increase the benefit of waste heat power generation.

Technical parameters：

Specification and model	DN2600~DN5000	body material	Q345、304、316L、1Cr18Ni9Ti
working temperature	-30℃~850℃	body material	Q345、304、316L、1Cr18Ni9Ti
Nominal pressure	0.01MPa	body material	Q345、304、316L、1Cr18Ni9Ti
Power supply pressure	380V 50HZ	Sealing surface material	Q345、304、316L、1Cr18Ni9Ti
Leakage rate	≤0.5%	Tilt angle	30~80°
Actuator model	B+RS1000~B+RS5000	Input signal	4-20mA
Torque model	10000~50000	Purpose	Cement line, steel, electric power, metallurgy
